Small-Bottle O2: Aithre, Aerox Compacts

Personal-sized oxygen bottles save space and weight, while serving as belt-and-suspender backup. But go bigger if you use O2 regularly.

No longer are there good excuses for not having oxygen in the cabin. Smaller-capacity oxygen tanks are relatively simple and inexpensive, and if you fly something where you’re counting every pound loaded in, composite tanks are featherweights. But there’s a capacity/endurance tradeoff.

Two latest aviation-focused small-bottle O2 interfaces come from Aithre and Aerox. We rounded them up and put the hose to the nose.

TARGET MARGET

Small-bottle oxygen tanks aren’t a new invention. Adventurers and athletes have used them for years. BOOST Oxygen (jumpstarted by an appearance on the television show Shark Tank) is one brand, packaging 95 percent pure supplemental oxygen in sports-friendly bottles.

Yes, we’ve seen some pilots keep them in the cabin, but think of these as one hitters, with the largest bottle (10 liters) good for roughly 200 seconds of continuous use. They’ll do little good for even short cruises in the teens. That’s where larger (but still compact) bottles from Aithre and Aerox come in.

Think of them as entry-level airborne oxygen supplies, which unlike the BOOST product, connect with cannulas and flow valves. They’re also simple to use and can be a good option for passengers.

These small bottles can also be used for emergencies during pressurization failure, when you run out of your primary oxygen supply, when an oxygen generator fails or whenever you feel crummy at higher altitudes. And if you occasionally fly at oxygen altitudes for short durations (maybe when climbing over weather) small-tank O2 can be a good alternative to a full-sized setup.

These constant-flow systems aren’t for long duration at altitudes where supplemental oxygen is required by FAA regulations.

AITHRE

That’s the Aithre 47-liter composite bottle connected with the single-prong nasal cannula.

As we reported in the portable oxygen system roundup in the November 2020 issue of Aviation Consumer, Aithre Aviation has an impressive app-driven biometric sensor interface that allows for real-time monitoring of SpO2 levels, oxygen quantity and flow, plus useful trend data for keeping tabs on the condition of up to six cabin occupants.

It recently added to the interface by offering two personal-sized composite oxygen tanks (non-DOT approved and made by a third party), plus a variety of accessories, including some that work with the Mountain High O2D2 pulse demand portable oxygen system. Aerox also conveniently packages some of its tanks with the Aithre accessories.

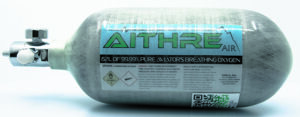

The larger 150-liter bottle is pictured here

The smaller portable setup has a 2000-psi 47-liter bottle with a fixed-flow, preset 0.5 LPM regulator. That’s good for roughly two hours of endurance. The bottle is 2.5 by 11.5 inches and weighs 1.9 pounds. Aithre says the smaller bottle is intended for use up to 15,000 feet. The tank is made of lightweight composite carbon fiber that has a 15-year service life, requiring five-year testing intervals.

The setup is easy to use, since it’s fixed flow. Simply connect the cannula and open the valve. Priced at $395, the entry-level Aithre bottle includes the regulator, a neoprene tote bag and one Uni-flo2 cannula. It’s inserted in one nostril and the hose tucks under the top of the ear. Aithre says the 7-foot, single-prong PVC cannula is as effective as a dual-prong one, delivering the same amount of oxygen. The idea here is more comfort when wearing a headset. It’s disposable, and Aithre says the $20 accessory should be replaced after two weeks of wear. You can also insert the soft tip into the mouth.

At press time, Aithre announced a larger 152-liter 2000-psi carbon fiber bottle for up to six hours of endurance. The larger bottle measures 4.5 by 13 inches and weighs 3.0 pounds when it’s topped off. Like the smaller 47-liter bottle, the 152-liter bottle has a fixed-flow regulator. The bottle, priced at $495, comes with the combined regulator/valve, the Uni-flo2 cannula and a carry case.

Both bottles can be ordered with Mountain High-compatible regulators. You’ll need to purchase a Mountain High two-cannula splitter and flow meter if you don’t already own one, and Mountain High offers Aithre packages and accessories. The price of the 47-liter bottle with the Mountain High regulator is $775.

Either Aithre bottle works with the Altus Meso oxygen tank pressure monitor, sold separately for $195. There’s also an optional ($195) transfilling hose. See the sidebar on page 20 for more on filling these bottles.

AEROX

This is a close-up of the Aerox PrO2 Plus hardware. The on/off toggle switch is show at the top

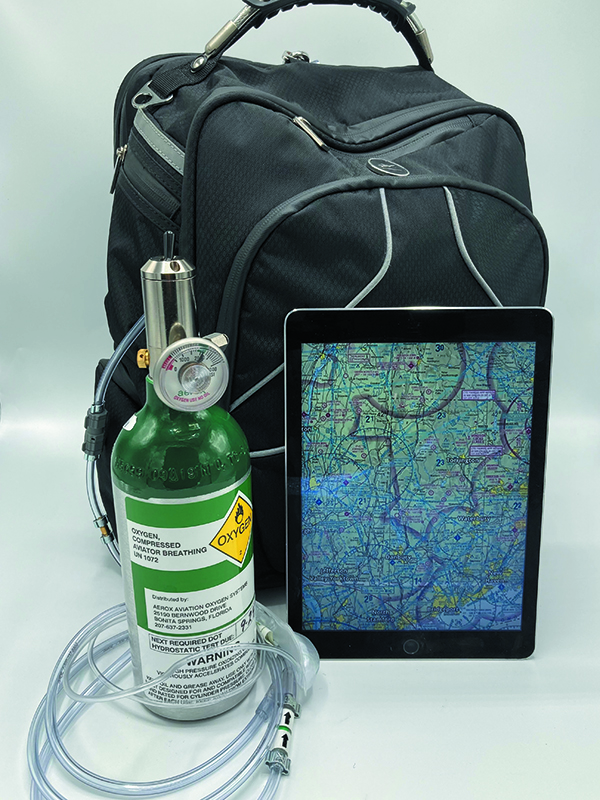

Certainly no stranger to the portable aviation oxygen market, Aerox has also introduced two entry-level compact bottles. First, the PrO2 Plus Flightbag setup.

Aerox said the compact aluminum bottle is intended for VFR pilots who occasionally fly at higher altitudes (up to 18,000 feet). As required by regulations, the system has a flow indicator (green when oxygen is flowing and red when it’s not).

We like that the Aerox has a secondary disconnect as a failsafe against inadvertently spending the oxygen supply if you disconnect the cannula while the bottle is on. A toggle switch on top of the regulator turns the flow on and off. The cannula plug-in uses a simple self-sealing quick-disconnect connector. Aerox bottles are fully DOT approved, and since Aerox is a provider to a wide variety of OEMs, it has built the entry-level small bottles to the same standards as its larger ones, and can be shipped filled. There’s a $55 hazmat/ground shipping fee when shipping the bottle filled. (Aithre told us it’s working on a bottle exchange program, but it isn’t approved)

For comparison, the larger Aerox A-series bottle is 180 liters, and the PrO2 Flight Bag Compact is 120 liters. That means an approximate three-hour endurance. The bottle uses a single continuous-flow mustache cannula—the same high-quality one that’s supplied with the company’s larger portable setups.

The Flight Bag Compact is $399. Worth mentioning is a version of the Aerox 120-liter bottle with continuos-flow regulator has been used as a canine bottle, with connection to a canine mask. As Aerox’s Scott Ashton explained, you really don’t want to be sharing your oxygen supply with your dog in the event it pulls out a hose and drains the supply.

There’s also the Pro2 system, intended as an emergency backup, which comes with a mask and can be used for backup in pressurized aircraft if there’s a main system failure. It doesn’t come with a preserving cannula like the Flight Bag Compact. Think in terms of using it during a quick descent when the primary system is down. It has an approximate 20-minute endurance.

Filling O2: Bottle Swaps Make More Sense

I’m hearing more stories of frustration from pilots who struggle to find reliable sources for oxygen refills, so when it came time to fill the 47-liter Aithre bottle the company sent for this article, I tried my own luck. With the bottle in my flight bag, I happened to be passing through Tac Air at the Bradley International Airport in Connecticut and gave it a try. The customer service rep took one look at it and gave me an immediate negative. “No, we don’t do that,” she said before I could finish asking. Huh? Tac Air can’t fill an O2 bottle? But Brian Gray, the director of maintenance for a fleet of bizjets co-located in the Tac Air building, recognized me as “that guy from the videos” and cheerfully offered to help. Into his hangar we went.

Aithre provided the $199 optional transfill hose that works with bottles equipped with the Mountain High regulator, but since I wasn’t using that setup, we simply tried to use the standard refill line that Gray had on the supply tank. The short story is it didn’t work well. Since the fitting was leaking, the bottle would only take half of the 2000-psi capacity.

According to Aithre’s Jon Ritter, the threads on the refill hose must be exact 3/8-24-UNF, and the leak during filling was due to a mismatch in the threads or a unique flare on the inside that wasn’t seating against the filler fitting. The fitting on the Aithre transfill hose is an extension to the typical CGA-540 fitting. If the refiller doesn’t have the exact one, the fitting can be removed from the hose and used as an adapter, which I should have done. Aithre has a video (https://tinyurl.com/26784uxx) that shows how it’s done.

A bottle exchange program might be easier, especially when an FBO wants to flat-rate a refill at $80 or more. I understand the labor effort.

“We’re working on the DOT special permit and need to secure this in order to legally ship the bottles full of compressed gas via carriers,” Ritter told me. Fact is, the Aithre bottles are smaller than the smallest DOT-spec bottles (and much lighter) and the company needs to get a special permit exemption for them to be recognized by carriers for shipment—like BOOST has done. The bottles currently have CE recognition and are tested/inspected to ISO 11119-3:2013 standards, but this isn’t enough without the stamp of approval from the DOT-SP exemption for shipping.

If you want to refill on your own, Aithre sells a $995 cascaded refilling kit. It includes two Mountain High 685-liter portable tanks (full of 99.99 percent pure O2) and a transfilling hose for filling the little bottles.

                            —Larry Anglisano



PRICE LARGER BOTTLES

We think it makes sense to compare the price of larger-capacity bottles (and the included hardware) before making the investment in a compact. Depending on the individual and the altitude in which you’re using it, a small bottle with a constant flow regulator just might not be enough, especially if you fly with a passenger.

The Aerox two-place A-series setup with Oximizer cannulas, individual flow meters and one mask is $632. The Skyox two-place system is $589 with cannulas and a mask.

Still, if you simply don’t have the need for regular oxygen use, we think these personal-sized bottles could make sense—especially if the investment drives you (or a passenger) to use oxygen. So many pilots and passengers are borderline hypoxic without even knowing it.

Last, Aithre’s 47-liter bottle is just the right size for stashing in a backpack, making it versatile for other activities. Contact www.aithreaviation.com and www.aerox.com for more.
