Pipistrel Velis Electro: Certified Electric

Although nicely executed, the Velis' endurance is too limited to make it practical for U.S.-style training. Operating costs are a moving target.

There’s so much buzz around the emergence of electric airplanes that it’s easy to forget what animates most of the enterprise is press releases. New airplane announcements fly fast and furious; the airplanes themselves, not so much. Cutting through this background noise is the innovative Slovenian company, Pipistrel. Last year, as it promised it would, it announced the first certified electric airplane, the Velis Electro. The word “certified” here shouldn’t be taken to suggest the Velis is a Part 23 airplane in the way that a Diamond DA20 or 40 or a Cirrus SR22 is. Yes, the Velis is a standard category airplane, but certified to CS-LSA at the 600-kg (1320-pound) limit. We would know this as an S-LSA in the U.S. with all the limitations that LSAs have, including day VFR-only approval and limited useful load.

I was given unusual access to a new Velis in the flight test regime by Isaac Silver and Brian Kish at Florida Institute of Technology (aka Florida Tech) at the school’s Melbourne, Florida, location. FT bought a new Velis with a grant from the Emil Buehler Perpetual Trust endowed to the school.

The institution has a long history of working with the FAA on research projects outside the agency’s normal purview and that’s what they’re doing with the Velis, wringing it out to feed the FAA enough data points to develop a framework for Part 23 certification. No one should assume those guidelines are imminent because they are anything but. The same probably applies to expanded consensus standards for electric airplanes.

Whether this matters for the Velis is debatable. Silver describes it as a well-executed, mature electric power train that’s a considerable leap beyond what went before it in the Alpha Electro and an airplane that’s probably been taken as far as anything electric can be for the moment.

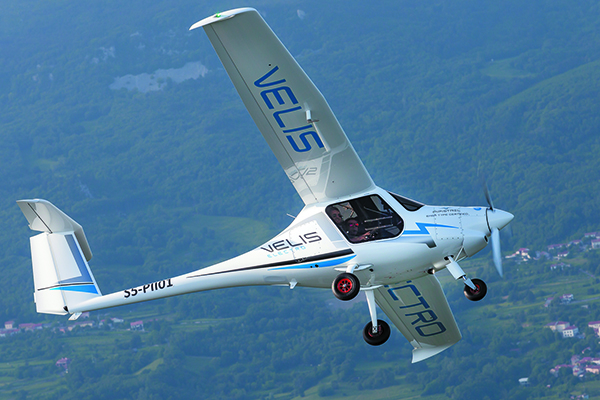

Velis Electro is certified under EASA CS-LSA rules. It’s a day VFR only. Clear plastic doors provide an expansive view out the sides of the aircraft.

Unfortunately, that’s not very far. With its 22 kWh battery system, the Velis is essentially a 40- to 50-minute airplane and allowing for the U.S. required endurance reserve, that’s a 20-minute flight time. And that may be pushing it at gross weight.  Thus far in the U.S. and probably forever, there is no dispensation from the 30-minute VFR minimum fuel requirement, including experimentals, which approval the Velis flies under in the U.S. (The Velis POH performance section allows for a 10-minute reserve.) While the Velis is finding buyers in Europe, I suspect this is the early adopter market. With its short legs, it’s hard to see how the Velis fits into the U.S. market as anything but a technology demonstrator, albeit a refined one.

THIRD GEN

Thanks to Pipistrel founder Ivo Boscarol’s unswerving dedication to low-emission transportation and electric flight, the company has been at the electric airplane game longer than any others we know of. It pioneered an electric motor glider called the Taurus, introduced in 2011, and although it hasn’t sold many, that served as a stepping stone for a proof-of-concept electric airplane called the WATTSUp in 2014 followed by a production airplane, the Alpha Electro.

Pipistrel has found success with its light, composite two-seat aircraft, especially in the European market.  A trainer version, the Rotax-powered Alpha Trainer, is a strong seller for Pipistrel. In the Alpha Electro, Pipistrel learned enough about batteries, inverters and motors to understand that (a) total battery capacity is (and remains) a significant limitation and (b) so is keeping the batteries healthy enough to deliver rated capacity. Here, the Velis Electro jumps ahead, with an improved battery system and water cooling to keep them thermally stable.

For all their seemingly miraculous ability to store watts and watts of power, lithium-ion cells don’t store much when compared to gasoline—the ratio remains about 100 to 1 in favor of hydrocarbon fuels, if not more. Just as hobbling is that lithium-ion batteries don’t like high discharge rates and fast charging. The former is as inevitable as the latter is desirable because who wants to wait around an hour just to go flying for another hour?

As lithium batteries age, they lose their ability to deliver rated energy and even though charged to an indicated 100 percent, they may be capable of delivering considerably less total power capacity than expected. This is not always predictable so Pipistrel has exerted a lot of effort in sensors and software to track aging-related capacity reduction. Both state of charge and state of health are displayed for the pilot.

Battery aging has proven to be a nuisance in electric cars but is obviously more serious in electric airplanes because judging endurance then becomes a moving target. In the Velis, below 15 percent capacity, the battery management system, to protect the cells, simply disconnects the pack and leaves you to shift for yourself. Further, the software is festooned with warnings, one of which advises the pilot that there’s not enough power remaining to execute a go-around, so … sorry, like it or not you’re landing.

SYSTEMS

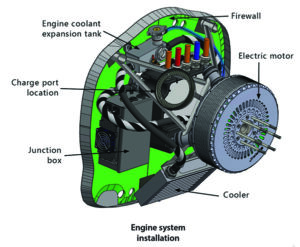

Yes, electric motors need water cooling so the Velis has a radiator and cooling system.

Like the Electro, the Velis builds on previous airframes, specifically the Virus SW 121, an EASA type-certified airplane. The two actually share the same type certificate. Showing its glider DNA, it has a high-aspect-ratio cantilevered wing with full-span flaperons and a conventional T-tail that’s high enough to require a ladder for topside inspection.

The structure is carbon, glass and aramid fiber built with a wet layup system. The landing gear is a composite leaf structure equipped with smallish 4.00-6 tires and Beringer brakes. Silver said he found significant wear on the tires after only a dozen hours of operation. If the Velis finds a niche as a landing cycle trainer, this could be a wear point. Unusual for an LSA, the nosewheel is steerable, thus the Velis handles precisely on the ground.

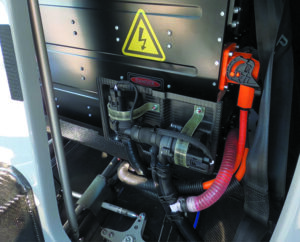

Batteries are also water cooled.

Glasswork and paint on the Velis are superb with all the gaps neatly sealed with gap tape. The wings are equipped with quick disconnect hardware, although we doubt it would be desirable to trailer it much. In any case, it shouldn’t be stored outside in the weather because the electrical connectors—of which there are quite a few—are not sufficiently weatherproof. And with voltages nearing 400 at 120 amps, this is not a trivial consideration.

The leap forward for the Velis is water cooling for the batteries and also for the motor. This was done to provide thermal stability for both discharge and charging, which promotes—at least it’s hoped—better battery durability. The system is similar to an automotive coolant circuit with pumps, a filler nozzle, radiators and, of course, antifreeze.

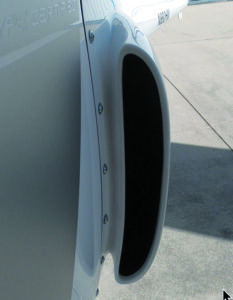

A scoop on the left side of the aircraft directs air into a radiator. You’ll need antifreeze, too.

There are two battery packs, one forward between the engine and the cabin and one aft where the Alpha normally has a small baggage area. FT weighed the packs at 73.7 kg or 162 pounds each. They are removable with effort, but aren’t quick change packs, as Pipistrel once considered but rejected. A separate 12-volt battery charged through a DC/DC converter powers the instruments and avionics.

There’s a fair amount of coolant, 1.4 gallons (5.4 liters) for the batteries and about a quart for the motor. Coolant operation is automatic and monitored on a cockpit display. The cooling system automatically activates when the aircraft is plugged in for ground charging.

Pipistrel uses Samsung INR18650 cylindrical cells popular for laptops and power tools. Designers of electric vehicles face an antagonistic challenge. Batteries that are thermally stable and have low risk of fire aren’t necessarily the same ones that will tolerate rapid discharge under takeoff and climb power and/or rapid recharge when nearly depleted.

Then there’s the question of energy density. Electric car batteries—notably the 2170 cylindrical cells that Tesla uses—have a claimed density of 265 watt-hours per kg (wh/kg), but throw in the pack structure, the cooling and sophisticated battery management system and the effective energy density is a lot less—about 160 wh/kg for Tesla. Depending on how you parse the Velis capacity, it appears to be between about 149 and 168 wh/kg as measured by FT. Pipistrel’s data rounds the capacity down to 11 kWh, although the nominal maximum is 24.8 kWh.

At the lower value and with a 65-kw (87-HP) motor—Pipistrel calls it an engine—the math is pretty simple: You can’t run the engine at full power or even high power and expect to have much endurance. The POH offers extensive mission planning to maximize the airplane’s endurance limits.

RANGE AND ENDURANCE

In a word, well, two words: not much. To begin with, the engine is limited to 90 seconds of maximum takeoff power, for both durability and power consumption reasons. Because the engine has terrific torque (220 Nm peak), that turns out to not be not much of an issue, but for a primary trainer, it’s maybe a bit much.

While the airplane accelerates and climbs well, it requires flaps for takeoff so the newbie pilot is confronted with reducing power and flap retraction right after takeoff, all the while monitoring the power instrument. While that’s doable, Silver said he thought it wouldn’t prove desirable for U.S.-style training in which Cessna 172s and Piper Archers can pound out full power all day and are, in the end, simpler to operate.

Following our short flight, Silver asked if I felt the range anxiety Tesla owners are quite familiar with. I surely did. When the power goes to full—it was a notch over 65 kw indicated—the displayed endurance drops like a stone, hence pulling the power back. And at gross weight—electric airplanes appear to be quite sensitive to weight swings, Silver says—you’re not going much above 1500 feet and you don’t want to get far from a runway, either.

One surprise is how much punch all that torque delivers because it comes on all at once. Silver told me I did what everyone who flies the airplane has done: a slight leftward drift and a right roll to correct. Ninety seconds comes quick and after the power is reduced and the flaps retracted, the airplane climbs we’ll enough—just not very high. We had only a few minutes to hustle to the practice area, try a few turns and cruise settings and then head back to the airport to meet the legal reserve requirement. And you’re advised to pick an upwind practice area if one is available, just in case.

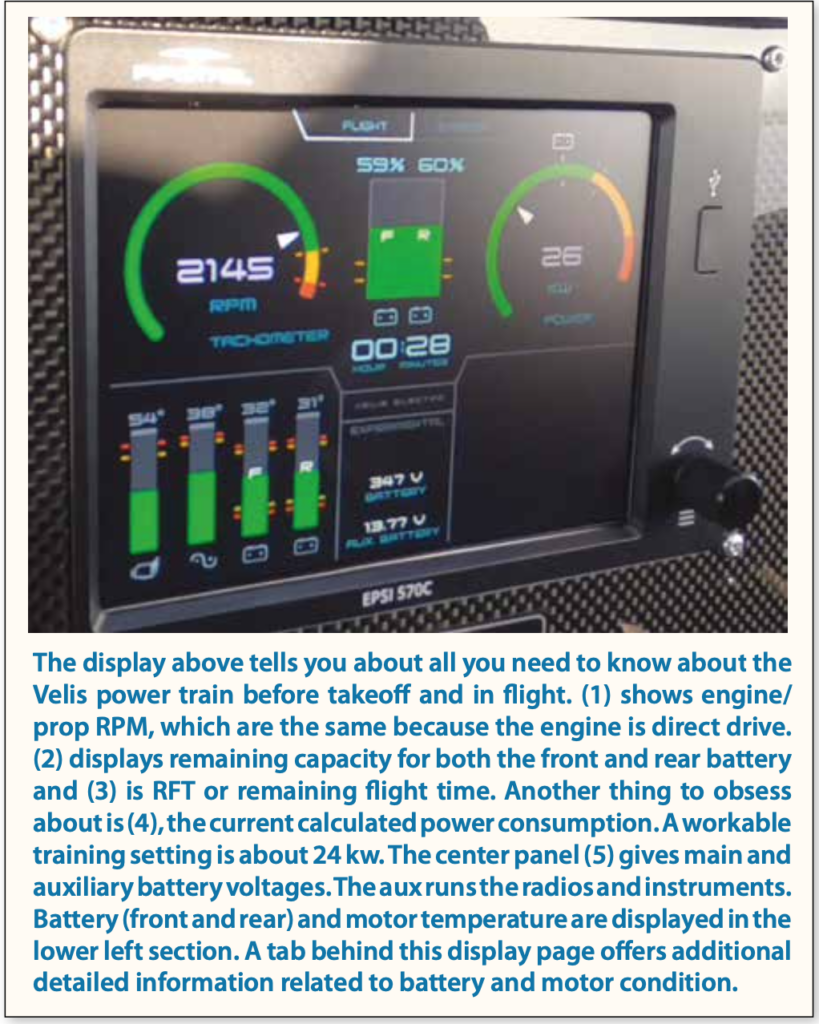

For a typical training speed—85 knots would be on the slow side—we were burning 22 to 24 kw after reaching the practice area. Even at that, the RFT indicator—remaining flight time—was down to 36 minutes. Flying straight back, we would land with just 30 minutes remaining or a little less, so I pulled the power back more.

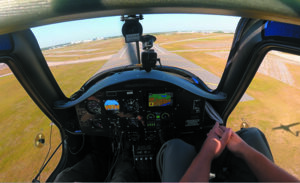

There was no time for any maneuvering, just a few quick power checks and some turns. The Velis handles we’ll enough and the visibility outside is spectacular, thanks to the clear plastic doors. Despite its quirks, it is fun to fly. But Isaac Silver is right. Pilots training in this airplane might be distracted by the constant worry over power remaining and probably for no particular advantage over a Rotax-powered airplane, at least for now. Five years hence? We’ll see.

The Trouble with Flaperons

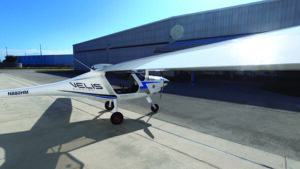

Like the Alpha Electro before it, the Velis has full span flaperons that provide both roll control and additional drag for landings. While this is an elegant solution, it has a downside related to landing speeds. With its low-drag, high-aspect-ratio wing, the Velis needs all the help it can get to slow down for landing. The published stall speed is 47 knots, the clean stall speed 54 knots. As LSAs go, that’s on the high side. The Flight Design CTLS, for example, is 8 knots slower, at 39 knots.

Flaperons complicate this because if maximum effort roll is needed at slow speed—say in turbulence when landing—the high side wing will suddenly have less flap than the low side and if the speed is between Vso and the clean stall speed, that wing can instantly stall. The only way to raise it is brisk application of opposite rudder to accelerate the wing out of the stall. Otherwise: potential prang.

Isaac Silver told me this happened to him while landing on a gusty day. Reflexive application of rudder saved it. A student would need to be forewarned and equipped to deal with this. In any case, Silver recommended not attempting a full-stall landing, but flying the airplane on similar to a wheel landing in a taildragger. That worked for me, but the Velis requires different technique than other LSAs.

A TRAINER? BARELY

After we landed and recharged the airplane we had used 12.6 kWh for a 21-minute flight. That means despite what the RFT said, we had a little less than that remaining so we landed under the 30-minute requirement. (The RFT attempts absolute truth and doesn’t build in a calculation for the 15 percent turn-into-a-pumpkin battery cutoff.)

Recharging took an hour and 20 minutes, although a fast charge setting can do it quicker. This brings up another wart: Hangars will need 220-volt high-amp service and many in the U.S. don’t have it. Three-phase would be even better.

On the plus side, the recharge cost only $1.26—not even pocket money. But factored into this is the cost of the battery replacement cycle and this remains an unknown; Pipistrel is still collecting data on it. Currently, the replacement cost is $22,200. Also, the engine currently has a 300-hour bearing/seal replacement requirement, for which it has to be sent back to Slovenia. At 20 minutes a pop, that’s about 900 flights so it’s not an imminent thing.

Silver said he didn’t see how this airplane could fit into U.S.-style training and I agree. If it ever gets certified—no guarantee there—its legs are too short for efficient training and I’m not sure I see its advantage as a pattern-cycle trainer. Cheap to operate, yes, but also tender. The POH is festooned with special warnings and conditions that even a CFI might have trouble mastering, much less a primary student. Then there’s the price. At $209,000 (€185,000) the Velis is more than twice the price of the Rotax-powered Alpha Trainer at $93,873 or €83,100.

Given that disparity in price, who buys the Velis? Perhaps a flight school driven by early adopter interest in electric flight or a private owner with similar predilections. Anyone with technical knowledge of the challenges involved in getting an airplane this far would have to be impressed with the Velis. But for now, it’s just a door opener to what comes next.
