Alternator Drive Coupling Tool Kit

A worthy purpose-built took kit for inspecting alternator direct-drive couplings on a wide variety of Continental engines.

If you’ve dealt with a failure of the alternator drive coupling on a Continental engine, you now understand the importance of the coupling inspection. Massachusetts-based Approach Aviation initially came out with a tool kit (ADCKIT1) designed for the proper removal, testing and installation of the alternator drive couplings found on Continental IO-520/550 series engines.

Now the company has a new kit—the ADCKIT2—that supports the inspection and installation on a wide variety of Continental engines. This includes the C-75/85/90/115/145, the E-165/185/225, the O-200/300 and the IO-240/360 series engines. It also works with IO-520/550 drive couplings.

The coupling provides a shear point—protecting the engine from damage should the alternator fail.  However, it’s not perfect and it’s imperative that the coupling be installed properly and inspected every 500 hours or any time the alternator is removed from the aircraft. This critical component has been the subject of several Service Bulletins (SBs) and Special Airworthiness Information Bulletins (SAIBs) because an out-of-tolerance or improperly installed coupling can lead to catastrophic engine failure. Some shops don’t have the tools to do it right, and misdiagnosis of coupling slippage is a common trap.

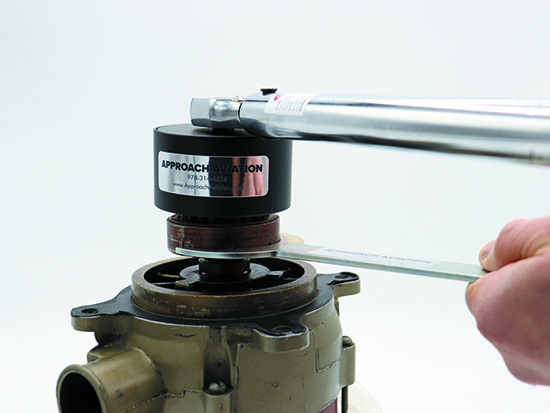

The $240 kit consists of a zinc-coated coupling spanner wrench and a unique coupling gear socket with steel housing and aluminum gear engagement, designed to protect the steel coupling gear from damage during maintenance. Together, these tools allow the coupling to be held in place (mounted on the alternator or free-standing) while the coupling gear slippage is checked with a calibrated 3/8-inch torque wrench.
