Bellanca Viking

You'll pay a premium for nicely refurbished models, but use caution with barn finds and ones left sitting outdoors.

If you have a need for speed and want retractable landing gear, your used market search of four-placers will likely include a Mooney, Piper Comanche or turbo Arrow, to name a few. But you might not consider a Bellanca Viking, which could outrun any of them. With wood-and-fabric design, it’s heavy (which also means sturdy handling), but turbocharged models can smoke along at 190 knots up high. Owners generally like their Vikings, but we’ve also seen some buyers get stung because they picked the wrong ones.

The airplane’s unique construction is one obvious hint for committing to a solid prepurchase evaluation on any Viking that you’re serious about. You’ll also want it maintained by someone who knows these airplanes well, plus you should store it inside when possible.

The earliest Vikings are we’ll over 50 years old, and prices start at around $40,000 for them, but pristine late-model Super Vikings with new avionics and clean maintenance records fetch $200,000 or more. You won’t find the market littered with Super Vikings—especially turnkey models that have been given the love they deserve. Here’s an updated look at the market and what you should know if you’re beginning your search.

MODEL HISTORY

The Viking’s family tree traces its roots back to the Bellanca Cruisaire, a triple-tailed retractable taildragger design reminiscent of aviation pioneer Giuseppe Bellanca’s early designs. The first Model 17 Viking appeared in 1967, powered by a 300-HP Continental IO-520-D. The model evolved gradually, but other than the engine, there were few major changes. The Continental-powered Viking was called the 17-30, while the 17-31, introduced in 1969, was powered by a 290-HP (later 300-HP) Lycoming IO-540, either normally aspirated or turbocharged. Either engine was available for much of the early production run; the 17-31 was discontinued after 1979 and in 1996, the Continental IO-550 was made available as an option. Some earlier airplanes have been retrofitted. The original hydraulic gear and flap actuation system was redesigned midway through the 1968 model year with the introduction of electric flaps.

The original fuel system—five tanks, two fuel selectors, eight possible combinations of selector settings and several sometimes incomprehensible gauges—was simplified to a left, right and aux system in 1974. After that mod, the fuel mismanagement accident rate for Vikings dropped dramatically. Production continued at a modest rate—in the peak production year, 1973, just under 200 were built—significant volume by modern standards, but a trickle for that era.

Bellanca Aircraft Corp. went bankrupt in 1980, the year things turned sour for the entire industry. In 1984, the company got back on its feet and started building Vikings again on a limited, custom-order basis. Only nine were built in 1984 and 1985 and none in 1986. About 38 were produced between 1984 and 2005.

In 2001, Bellanca went bankrupt again. In 2002, a group of six Bellanca enthusiasts bought the company from the state of Minnesota and established Alexandria Aircraft Co. LLC. Their immediate goals were to provide technical support and parts to owners and A&Ps in the field.

By early 2010, however, market conditions no longer supported this enterprise and the assets of the factory were put up for auction.

There are about 1360 or so Vikings in the fleet, most of which are Continental-powered. The owners of AALLC also reduced parts prices substantially and rewrote the type certificate for Continental-powered Vikings, which helped prospective buyers looking to replace a run-out Continental IO-520 engine with a IO-550.

PRICES UP–FOR GOOD ONES

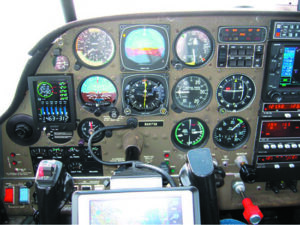

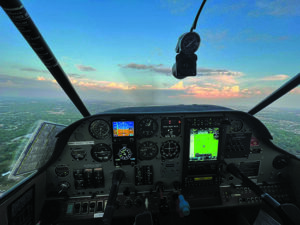

Mark Sellers sent the photo of his modern Viking panel completed by Gulf Coast Avionics. It has dual Garmin G5 electronic flight instruments and a GTN 750 navigator.

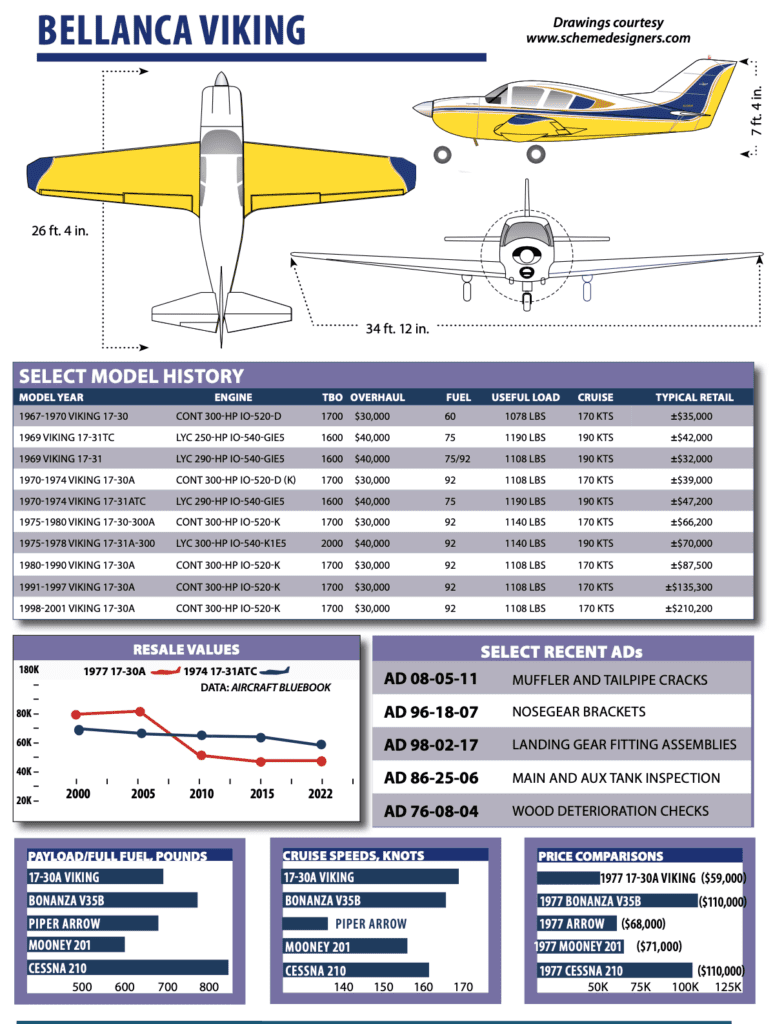

Like most complex piston singles, the market for well-cared-for and refurbished Vikings is strong. For a starting point on price, we turned to the Spring 2022 Aircraft Bluebook, which lists the latest 2001 Model 17-30A at $205,000 (average list).  A typical overhaul for the 300-HP Continental IO-520-K engine is every bit of $40,000. Add another $10,000 on average for an IO-550 upgrade. Cherry Super Vikings with newer engines and high-end avionics work might flirt with $300,000 in the current market.

Prices for earlier Vikings are holding steady since we looked at the market a couple of years ago. The first 17-30s still hover around $30,000 while mid-1970s Vikings can move for north of $50,000. Again, refurbs and mods come at a premium. So do ones with good inspection records (yes, the wooden spar comes to mind).

The Viking panel has traditional round instruments and the King KFC200 autopilot

As we’ve said in the past, among vintage complex singles, these prices represent a good value if speed and travel is your goal, but Viking experts consistently tell us that not all Vikings are created equal from an upkeep standpoint. The advice is basic: Be extremely careful with barn finds and those sitting in the tall grass.

Look for one that has flown regularly and, above all, has been hangared or at least sheltered. Moisture in the wings is the biggest threat to the value and the airworthiness of the airplane and drying them out at 160 knots is the best thing for them, owners say.

BUILD PERFORMANCE

A sturdy airplane it is. Inside the wing are two laminated wood spars running the length of the wing, connected by a system of ribs. Inside the fuselage is a latticework of stout steel tubes that form the engine mount, then carry through the fuselage to form the tail. Add laminated spruce forming one axis and a steel roll cage forming the other and you’ve got a very sturdy airframe with better occupant protection than many modern designs can claim. By modern standards, the normally aspirated Viking is a credible but not exceptional performer. Expect to cruise at around 160 knots, 10 knots slower than heavy singles like the Cessna 210 and A36 Bonanza. The turbo helps, of course. Haul the airplane up to FL200 and you’ll see 190 knots. On the other hand, a Viking will outclimb a 210 or an A36.

The book claims 1210 FPM and owners report similar numbers. For all its power, the Viking’s useful load is typically 1000 pounds or so and even less with a lot of equipment on board. That’s in the range of an average 200-HP retractable, such as a Mooney or Arrow. On top of this, the big engine requires a lot of fuel, which further limits the cabin load.

Fuel capacity is either 60 or 75 gallons, but owners say there don’t appear to be many 60-gallon versions. In fact, aux tanks in early models bring the total to 92 gallons. “With full fuel, my 1973 Viking will carry three passengers, or two passengers and baggage,” one owner told us. This payload is typical of all aircraft of this era. Commented another about his turbo: “Lycoming engine, heavier than the Continental, plus two turbos, equals a pathetic full-fuel legal load of two adults plus bags.” Compare that to a Cessna 210, which has a useful load pushing 1400 pounds in some cases and can typically haul 92 gallons and four people plus baggage.

But the Viking has always been more sports car than pickup truck.  With all four seats occupied by FAA-standard humans and 100 pounds of baggage, the airplane can ship maybe 40 gallons of avgas—enough to fly 250 miles with IFR reserves. However, most owners of post-1973 Vikings comment that they’re content with a choice of full seats or full tanks and insist that their bladders usually give out before the fuel does.

HANDLING

The Viking’s cabin isn’t exactly cavernous, but pilots north of 6 feet tall generally don’t complain.

We’ve gotten enough pilot reports from owners over the years to know the Viking is almost universally praised for its light, smooth aileron control. “The Viking is a very stable aircraft in turbulence and IMC conditions with no Dutch roll due to the very ample vertical stabilizer. It rolls and handles like a sports car—not like a station wagon,” reports owner David Alger. ”My Viking has the same empty weight as the Lance I used to fly, about 2225 pounds. But the control feel and harmony are just wonderful. Low-speed control on the Viking is excellent and makes short-field operations easy, and the stall is very mild.” Mark Sellers weighed in: “It’s also a very good IFR platform, not twitchy and pleasantly light on the controls.”

Landing can be tricky, however. Power off, with gear and flaps out, the Viking has an awesome sink rate that owners liken to Steinway pianos. The steep descent angle, however, does allow a skilled Viking pilot to make short landings and the excellent climb rate enables the airplane to depart from short fields just as well.

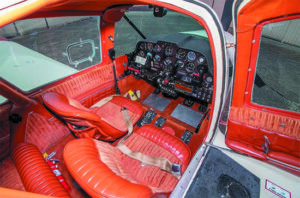

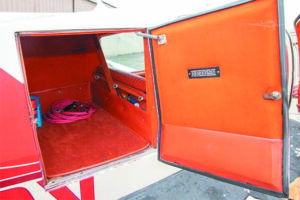

Enter through the single door on the right side, while a baggage area is accessible through an aft door and from inside the cabin.

The Viking’s cabin dimensions are modest at best, a reflection of its 1930s design heritage. “The cabin is small for two guys my size,” reports a 210-pound Viking pilot. Even a rabid pro-Viking zealot admitted that the cabin is “not roomy.” Not as tight as a Mooney, maybe, but no 210, either.

Interior appointments draw raves. Many Vikings have a leather or crushed-velour upholstery that puts the chintzy interiors of Pipers and Cessnas to shame. Cabin noise, on the other hand, is high, although some owners tell us it’s no worse than other aircraft. “A Viking is certainly no louder than any other single-engine GA aircraft of similar vintage. Anyone flying any single-engine GA airplane without ANR won’t be able to hear much after a while anyway,” says Craig Gifford.

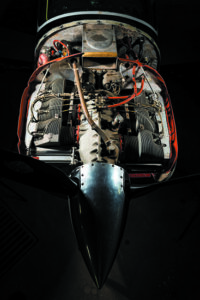

Dillon Jones shot the image of a big Continental on a Super Viking.

We don’t think there’s much to differentiate the two normally aspirated engines from an ownership point of view. The turbo is another matter. Prospective buyers should carefully consider whether the extra acquisition cost, complexity, fuel consumption and potential overheating problems are worth the benefits of turbocharging. Since it’s a turbonormalized system—you get full power all the way to the flight levels rather than an extra boost on the ground—in most cases (outside the Rockies, at least) the answer is probably not. One reader who owned both advised against the turbo version.

The gear system is robust, but there’s apparently some confusion in the field about exactly how to adjust the limit microswitches to make the system work well. The emergency gear extension in a Viking is two-thirds foolproof and one-third tricky. When the mains retract, they fold forward and are held there under pressure, so dumping pressure causes them to fall into the slipstream and lock.

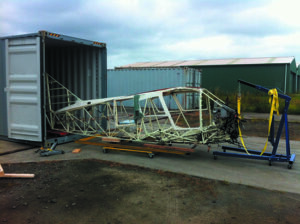

The cabin is protected by a steel tube roll cage, giving the aircraft favorable crashworthiness.

Step one of the emergency extension procedure is to slow the airplane to 90 knots, so the over-center spring can push the nosegear through the slipstream and let it lock. No cranking or huffing and puffing necessary—just slow the airplane down.

PARK IT INSIDE

Owners were all but unanimous in emphasizing the need to hangar a Viking. “Absolutely imperative!” said one. “A crucial necessity,” echoed another, although one reader insisted a shade hangar in a dry climate is good enough.

“I keep my Viking inside. But I would keep any airplane I fly IFR inside. Wood deterioration is a function of moisture content. Keep your wood dry and rot can’t happen. Simple as that. That said, I often fly in rain and leave the plane outside on trips,” reports Mark Sellers.

The primary reason is to prevent the accumulation of moisture that can trigger wood rot in the wing, but it’s also a good idea to protect the fuselage fabric from ultraviolet radiation and moisture.

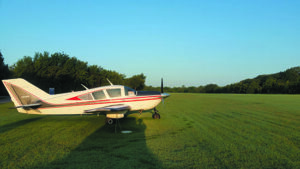

Got grass? Michael Theobald said he was impressed with the Viking’s ability to get in and out the turf without any issues.

The “lifetime” Dacron covering will last a long time in a hangar, but owners report the need to recover in as little as six years if the airplane is left outside.

Factory support for the model has been rough. When we last looked at the market, parts were generally available from Alexandria Aircraft LLC but now the website doesn’t seem to work. Furthermore, the airplane’s rag, tube and wood construction means that not every mechanic will be familiar with high-level repairs, but support isn’t really an issue if you know where to go. There are a few standout shops that know these airplanes.

“I personally don’t worry about AALLC because it’s really the shops at Rocket, Weber, Witmer and MARS (nicely covering all parts of the U.S.) that keep these airplanes flying. The future of 100LL poses a far greater risk to the Viking future than the status of the factory,” says Craig Gifford.

WRENCHING, TYPE CLUBS

We’re told by Viking owners and techs some of the best resources for prospective buyers include the Bellanca-Champion Club. Find it at www.bellanca-championclub.com.

There’s also the Viking Pilot’s Forum at www.vikingpilots.com. There is the active (over 1000 members) Bellanca Super Viking private Facebook page, and we appreciate those members who answered our call for feedback and images when we joined. The group is a good source for maintenance, mods, insurance matters and general information from folks who live with these airplanes.

From our experience having our hands in some of these old airplanes, when it comes to maintenance, the Viking is comparable to other complex airplanes in terms of cost. But that’s only for a well-maintained airplane. There’s no room for hack work, so bring it to a shop that has the manuals and experience with Vikings. Poor maintenance may be better than no maintenance. This includes avionics work, where drilling antennas is but one critical task. Most important is a proper airframe inspection by techs who know what to look for. Many techs simply aren’t trained how to inspect and repair wood and fabric structures.

Bellanca Viking Victims: Fuel

One of the grimmer realities of aviation is that the more fuel tanks an airplane has, the less likely it is that a pilot will be successful in getting all the fuel from the respective tanks to the engine.

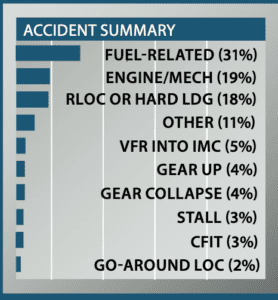

Our review of the 100 most recent Bellanca Model 17 series accidents did nothing but confirm that pilots do not handle multiple fuel tanks well—fuel mismanagement made up a staggering 31 of the accidents. In nearly all of the events the pilot had plenty of fuel in the airplane yet, after running a tank dry, either did not switch to a tank with fuel or did  and did not follow the restart procedure calling for turning on the aux fuel pump.

A factor in the fuel-related engine stoppages, in our opinion, was fuel gauges that were grievously inaccurate or not working at all. That played  in an accident where the pilot ordered—and paid for—40 gallons of fuel but the rookie lineman misread the meter on the fuel truck and only put in four gallons. The pilot didn’t visually check and the fuel gauges weren’t working. Not surprisingly, the flight didn’t go well.

We do have to point out that there were some five Viking accidents in which either a student pilot was flying the airplane, with passengers, or a person with no history of having any rating stole the airplane or had bought an airplane and taken a few hours of dual. Of those five, three involved running a tank dry and not getting a restart.

Moving to the rosier side of the balance sheet, only four pilots forgot to dangle the Dunlops prior to landing. Of course, one tried to go around. He made it to 100 feet before the airplane stopped climbing, so he extended the gear, landed in a field and went through a fence.

There were four gear collapse events—all due to maintenance that either hadn’t been performed or was ill-performed.

Poor or nonexistent maintenance was a theme we noted not only in the gear collapse accidents but also in the 19 engine/mechanical crashes. Following one accident, both mags were so worn that they would not generate a spark—not surprisingly, they were we’ll beyond the recommended 500 hours between inspection and repair or replacement. The classic danger of cylinder replacement in the field—under-torqued hold-down bolts—made an appearance in eight accidents. Mixture and throttle cables were improperly connected in two.

We were astounded by (well, not really, we have ceased to be amazed at how poorly some owners treat their airplanes) the engine-failure accident where the post-crash exam revealed that every one of the fuel quick drains had been disabled—including the gascolator drain—so there was no way to drain water out of the fuel system. There was so much corrosion in the fuel manifold valve that it had blocked the flow of fuel to the engine. Oh, and the previous annual had been 23 months earlier.

We felt for the guy who was cautious about fuel. He wisely made a precautionary landing on a road when he thought he was about to run out. Frustratingly, he hit a sign and went into the ditch.

It was later found that the gauges were bad—he still had an hour of fuel, plenty to have reached his destination with reserve.

THE SEARCH

You’ll find a variety of Vikings during the hunt. Here’s a quick reference. There are three basic models of the Viking: the Continental-powered 17-30 and 17-30A, the normally aspirated Lycoming-powered 17-31 and 17-31A and the turbonormalized Lycoming-powered 17-31TC and 17-31ATC. The “A” designates a type certificate change that increased the gross weight and added some other modifications. The most produced version is the 17-30A Continental-powered Viking. Early versions of the Viking had the IO-520-D. This changed to the IO-520-K in the early 1970s. The change is identified externally by the presence or absence of a cowling-mounted air filter under the crankshaft, which the IO-520-D has. In 1996 Bellanca added the IO-550-F to the type certificate. This change allowed the IO-550 to be installed on all 1979 and later airplanes without an STC. The main gear door STC, referred to as the four-piece door, was standard on production aircraft around 1973. Aircraft after 1992 have a factory-produced three-piece main gear door.

Starting in midyear of 1973 the fuel system was simplified by the addition of interconnect hoses, making the three tanks installed in each wing act as a single tank. These airplanes had a slightly smaller optional aux tank in the fuselage. The aux tank was downsized to gain more baggage space. In 1989 the fuel system was changed again to decrease the unusable fuel and add to the capacity. The wing tanks remained the same size, but an additional feed line was added that runs from the outboard tanks to the inboard tank and the vent, while reconfiguring the fuel return lines.

Air/oil struts were incorporated into the A-model aircraft as part of the gross weight increase. Some earlier aircraft have been upgraded to air/oil struts. In 1979 there were major changes forward of the firewall with the addition of cowl flaps and hydraulically actuated nosegear doors. The two-piece doors were added in 1976.

When we looked at the Viking market a couple of years ago, Viking expert Dave Pasquale at Pasquale Aviation in Pennsylvania gave us a rundown that’s useful for potential buyers. Here’s what he suggests:

When shopping for a Viking, my advice is to bring it to a mechanic who knows Vikings. There are four Viking specialty shops scattered around the country. They are Weber’s Aero in Alexandria, Minnesota, Rocket Aviation in Plainview, Texas, MARS in California and Pasquale Aviation (my shop) in Pottstown, Pennsylvania. Several of us have been working on creating publications to build the knowledge base among technicians and pilots. There’s a video detailing how to properly inspect the Viking wings at tinyurl.com/ycetdwzd. We’re also creating a prepurchase inspection document, similar to what ABS (American Bonanza Society) has for Beech models.

A concern with wood wings is rot. But wood rot isn’t a widespread issue for properly maintained Vikings—and that includes keeping the wings dry. Consider that wood doesn’t fatigue like metal does. All of the Viking wing failures were due to severe rot at the inboard end of the spars. This type of rot would have been prevented/detected if the airplanes had proper maintenance. Wood is the original composite structure. For the most part the wings are held together with resorcinol glue. Resorcinol has proven to be extremely durable and long lasting. It is not affected by chemicals or moisture, plus it differs from epoxy in that it isn’t affected by heat. This allows Viking wings to be painted in any color without degrading the structural integrity of the wings. There is no service life limit on the Viking wings. Wood wings can be repaired by a skilled technician using common tools. I have done in-depth repairs to Viking wings such as spar splices and complete re-skin jobs using tools that can be sourced at a big box hardware store. The repairs don’t require the use of vacuum bagging and specialized heat sources. All gluing can be completed at room temperature. The downside: Glue repairs done by the inexperienced can lead to trouble and are a good reason to have a Bellanca specialized mechanic complete a prebuy evaluation.

As to fabric and paint, there are two weights of fabric used as the base covering material. The wings use a lightweight Dacron fabric; this used to be called Ceconite 104 and is now called Uncertified Light. The fuselage and flight controls are heavyweight Dacron, or Ceconite 101. For the most part this fabric can last the lifetime of the airplane, but it degrades from UV light. Complete fabric recovering jobs are generally the result of paint failure.

Plenty of factors affect the longevity of the paint on any fabric airplane. As the paint ages it cracks, which can be repaired (to a point). Eventually, they become so numerous that it makes more sense to start over and recover the airplane. Pay close attention to the overall paint condition, and find out if the airplane has been repainted recently. If the paint looks like alligator skin, it might be best to look at another airplane.

It might not make sense to buy a Viking in need of a recover because it simply costs a lot. I tell people it is similar to buying the airplane again because the base price for a recover at a Viking shop usually starts around $45,000. Add other tasks like painting the landing gear and installing mods, and the project gets pricey.

Beware of finish work shortchanged, done by simply sanding and painting the airplane. This often includes using an automotive urethane finish. The airplane will look great when it is finished, but the extra paint only accelerates the cracking the paint job was trying to hide.

As for parts, one of the best things about working on the Viking is very few parts require advanced manufacturing. This means the Viking is more field serviceable than many others, and isn’t as expensive.

A good example is the landing gear, with its welded steel struts. Occasionally a crack will develop along a weld, but most of the time I can have the crack repaired at my local welding shop that specializes in motorsports.

If a landing gear part is damaged beyond repair the factory, Alexandria Aircraft, still supplies parts and usually has them in stock. If it isn’t in stock, they will make it for you. The turn time on most newly fabricated parts is generally a couple of weeks.

Perhaps the most desirable of the line are 1979 and newer airplanes due in part to increased cruise speeds afforded by the cowling and nosegear changes, while the IO-550 adds to the appeal of these airplanes because they are the fastest Vikings for operating between 7000 and 10,000 feet. The turbonormalized Vikings will do slightly better as the altitudes get we’ll into the flight levels. However, I generally recommend getting a turbo if you need to operate in the flight levels. The maintenance can be intensive.

WHAT OWNERS SAY

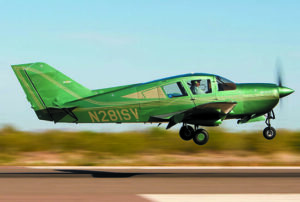

That’s Fred Olsen’s good-looking 2000 17-30A

When I was researching to buy our first plane, I wanted something that went faster than a 172 (my trainer). I looked at Piper Arrows, Mooneys, Beech Bonanzas and Cessna 182s. They all had one of two problems, or both—more than I wanted to pay, or too slow. Somehow a Bellanca Super Viking showed up in a search and I was hooked. Coming from an architectural background I knew that the wood naysayers were wrong. Really wrong. If steel and aluminum are so much better than wood, why do the huge majority of houses get built from wood? Wood is easily worked, retains its shape even if bent and is strong.

We spent about five months searching, having a prepurchase done on an airplane in Mississippi, before settling on our purchase sourced from Texas. At $65,000 with 650 hours on the engine, a Garmin GTN 750 and an Aspen 1000 Pro, plus an easy cruise speed of 150 to 160 knots at around 13.5 to 14 GPH, it was an awful lot of plane for the bucks. We’ve never regretted the purchase and it’s a dream to fly.

Light and responsive on the controls, and, with a 300-HP engine up front, density altitude doesn’t become an issue on many trips.

The Viking is a graceful sports car in true Italian style. And it never fails to turn heads and invite comment wherever we go. Spam Can? Heck no!

Ian Shere – via email

I was a previous 1/4 share owner of a 1973 17-30A and I accumulated just under 172 hours in the airplane before we sold her.

We learned along the way that you need a mechanic who is familiar with this type of machine. People tried to scare me away from the wood wing, but I absolutely loved it. This plane was remarkably agile and easy to fly. Hands down, it was the best-flying airplane I have flown to date. I was pleasantly surprised with her performance on grass fields too.

Our instrument panel was a dream and we replaced the traditional attitude indicator and the directional gyro with dual Garmin G5 electronic flight instruments, a Garmin GNS-series navigator and a JPI EDM730 engine monitor.

We flight planned for 150 knots in cruise flight, and 50 degrees lean of peak allowed the normally aspirated Continental IO-520 to burn 15 GPH. In normal cruise it would burn around 17.5 GPH.

Maintenance issues were really not that bad. We did have a persistent oil leak from the oil filter add-on. We later found that those units needed to be retorqued twice after a few hours with progressively increasing torque settings. The new owner’s mechanic discovered this, and they no longer have an issue with oil leaking. The gear doors also needed adjusting to ensure they remained tightly closed at higher speeds.

Michael Theobald – via email
